Digital Metal

Real metal in digital printing – from lot size of 1

KURZ DIGITAL METAL

True metal digital decoration from copy 1

DIGITAL METAL is the perfect digital concept for metallic decoration in print finishing. Our stamping foils with elegant, real metal are now available for digital printing for the first time – no set-up times, no tools, just completely new design options.

DIGITAL METAL creates individual motifs or customizations using the loveliest metallization. Our DIGITAL METAL foil provides highest gloss and sharp-edged motifs, and is easy to process. Foil transfer is 100 % digital and can be overprinted digitally or conventionally.



Benefits Overview:

  • Super fine definition
  • Compatible to most toner/ink based materials
  • For mass customization and individualization
  • Customized metallic finishing for individual labels/packaging or various label/packaging campaigns
  • Attractive embellishment for small runs, special editions or different product series
  • Variable data brilliantly highlighted
  • Impressive high gloss effects
  • Huge variety of colors and metallic shades feasible thanks to overprintability
  • Almost no limits for creative design
  • Late stage customization
For more information:
Digital embellishment with KURZ Digital Transfer


Application Machines

DM-JETLINER®

Digital inline metallization on paper and label materials

DM-JETLINER® lets you transfer metallization effects onto paper and label materials during digital printing. The transfer process can be integrated seamlessly inline into your digital printing machine — upstream from the digital color printing. Once the foil is applied with a UV-curing adhesive to the unprinted substrate, the PET carrier is removed, and the substrate can be overprinted within the printing machine.

DM-LUXLINER®

Digital metallization on paper and cardboard stock

The DM-LUXLINER® allows a digital transfer of metallization onto paper and cardboard stock. The transfer process is made upstream of the digital color printing. The designs to be metallized are first printed digitally; then, the DIGITAL METAL foil is transferred by the DM-LUXLINER and the PET carrier is removed. An overprinting in 4 colors with very accurate registration is possible using suitable digital printing presses.

DM-SMARTLINER®

Digital metallization for brilliant design on paper and cardboard stock

The DM-SMARTLINER® adds value to your products through multiple attractive decoration or security options, and allows you to add metallic 2D effects to your existing sheet-fed printing process. Whether for commercial production or mass customization, individualization, short runs, or special editions both in commercial or packaging printing, with our stand-alone solution you will remain flexible and highly efficient.

DM-JETLINER®
  • Can be integrated into production chain
  • Follows production speed of the digital printing press
  • Foil, adhesive and enhancement module from one source
  • Speed to market
  • Late stage customization
  • Custom-made hologram foils available (tickets, etc.)
  • Foil is overprintable (imitate/replace offset coldfoil)
  • Consignment stock of foil/pay per stamp model
  • Automatic foil reordering
DM-JETLINER® Specifications
Length/width/height
2.5 m/1.5 m/1.8m
Stamping speed
mechanical speed adjustable to 2,400 sheets/h (B2 format)
Heat output
at 30 m/min: approx. 6 kW
Stamping temperature
40 °C – 220 °C (IR heating system)
Electrical requirements
400 V, 50/60 Hz, 3 phases with N, P, E, 32 A fuse, 13 kW
Compressed air
max. 6.5 bar (oil-free), hose size Ø = 10 mm, 300 l/min
Foil width
550 mm
Foil core
3"
Paper weights
120 g/m² – 350 g/m²
Paper formats
min. 320 x 460 mm, max. 560 x 750 mm
Optional
palette feed

DM-LUXLINER®
  • Very easy to set up
  • Good results as of the first sheet
  • Up to 2,400 B2 sheets/hour (depending on print and substrate)
  • Foil and machine from one source
  • Custom-made hologram foils available (tickets, etc.)
  • Foil is overprintable (imitate/replace offset coldfoil)
  • Consignment stock of foil/pay-per-stamp model
  • Automatic foil reordering
DM-LUXLINER® Specifications
Length/width/height
2.5 m/1.5 m/1.8m
Stamping speed
mechanical speed adjustable to 2,400 sheets/h (B2 format)
Heat output
at 30 m/min: approx. 6 kW
Stamping temperature
40 °C – 220 °C (IR heating system)
Electrical requirements
400 V, 50/60 Hz, 3 phases with N, P, E, 32 A fuse, 13 kW
Compressed air
max. 6.5 bar (oil-free), hose size Ø = 10 mm, 300 l/min
Foil width
550 mm
Foil core
3"
Paper weights
120 g/m² – 350 g/m²
Paper formats
min. 320 x 460 mm, max. 560 x 750 mm
Optional
palette feed

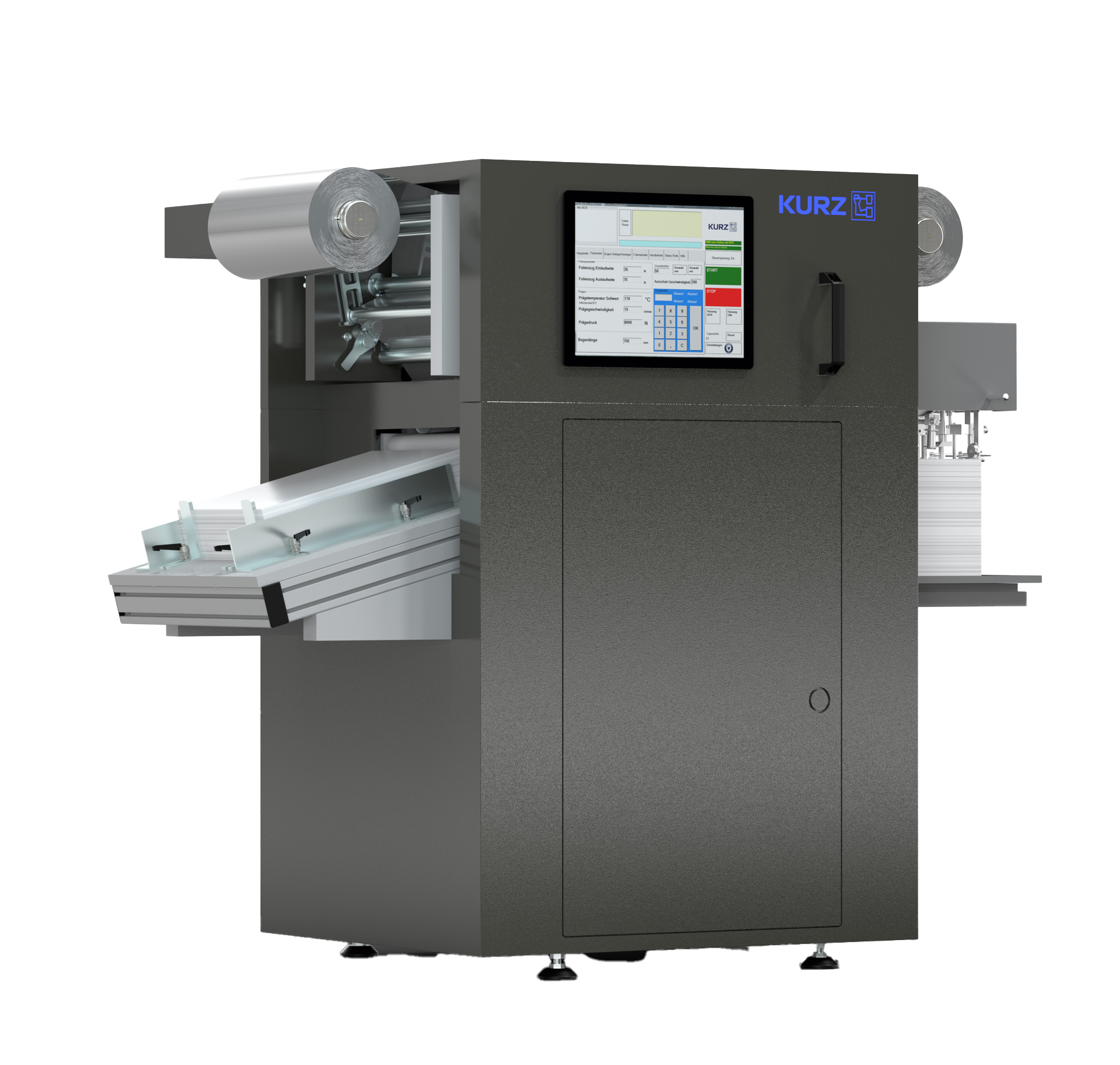

DM-SMARTLINER®
  • First sheet is usable – no make-ready required
  • Up to 3,100 SRA3 sheets/hour (depending on print and substrate)
  • Machine, consumables & service from one source
  • Custom-made hologram designs available (tickets, etc.)
  • Metallization is over-printable and customized
  • Consignment stock of consumables/pay-per-stamp
  • Automatic consumables reordering
DM-SMARTLINER® Specifications
Length/width/height
approx. 2.8 m/1.2 m/1.7 m
Stamping speed
mechanical speed adjustable to 3,100 SRA3 sheets/hour
Heat output
at 30 m/min: approx. 6 kW
Stamping temperature
40 °C – 220 °C (IR heating system)
Electrical requirements
400 V, 50/60 Hz, 3 phases with N, P, E, 32 A fuse, 13 kW
Compressed air
max. 6.5 bar (oil-free), hose size Ø = 10 mm, 750 l/min
Foil width
340 mm
Foil core
3"
Paper weights
120 g/m² – 350 g/m²
Paper formats
min. 210 x 297 mm, max. 390 x 660 mm
Optional
palette feed
